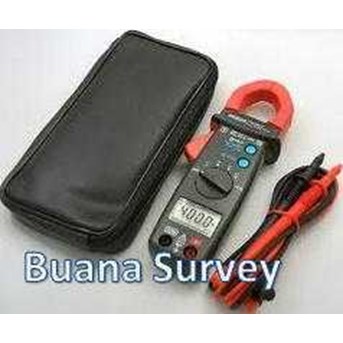

Sanwa DCM 400 AD, Digital Clamp Meter, 085282731888

Sanwa DCM 400 AD, Digital Clamp Meter 085282731888 Digital Sanwa DCM400AD Clamp Meter 400A AC/ DC Basic Features • 4000 count / 42 segment analog bar graph • DC / AC current 40A/ 400A • Data hold / Range hold • Relative value • Continuity check buzzer • Auto power off ( 30min.) • Low battery power indication • Display : numeral display 3999, bar graph 42 segments • Sampling rate : 2 times / sec. 20 times / sec. for bar graph • AC frequency bandwidth : 50~ 500Hz Specifications ACA : 40/ 400A DCA : 40/ 400A ACV : 400/ 600V DCV : 400/ 600V Resistance : 400Ohm Continuity : Buzzer sounds at less than approx. 40Ohm. Open voltage : approx. 1.5V Bandwidth : 50~ 500Hz Display : 4000 Clamp diameter/ Conductor size : 25mm/ 10x34mm Withstand voltage : less than 3700Vrms Battery : LR03 x2 Size / Weight : H193xW50xD28mm / approx. 230g Standard accessories included : Test lead ( TL 88) , Carrying case ( C DCM400) , Instruction manual Safety IEC61010-1 ( EN61010-1) 2001-02 CAT.III 300V / CAT.II 600V Optional Accessories Clip adapter : CL-11, TL-8IC Test lead : TLF-120 Hubungi Toko DINS ( Digital Instruments) jl. Muchtar Raya No. 1D, kreo - Ciledug - Tangerang 15155 CP : Irfan Syihabudin XL : 081908101888 AS : 085282731888
