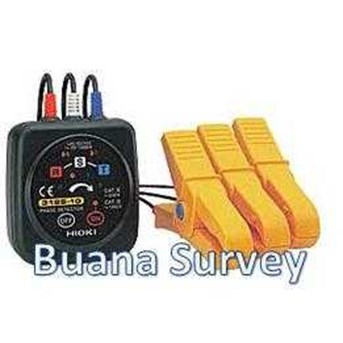

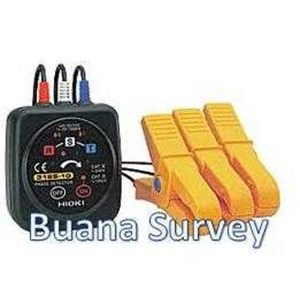

HIOKI 3129-10, PHASE DETECTO, 085282731888/ 081908101888

HIOKI 3129-10, PHASE DETECTOR Call Syihabudin 085282731888/ 081908101888 Top of its Class in Safety Magnetic adapter, Fixable to distribution boards CATIV 600V/ CATIII 1000V Safe No metallic exposure ensures absolutely safety to the operator Wide clips compatible to thick cables of 7mm( 0.28in) to 40mm( 1.57in) in diameter Basic specifications Measurement Function Phase detection ( positive, negative) , live wire check ( R-S/ S-T only) Voltage Detection Method Electrostatic induction method Voltage Range 70 to 1000VAC ( 50/ 60Hz) ( sine wave, continuous input) Clamp Diameter 7mm( 0.28in) to 40mm( 1.57in) of insulated wiring Display Phase Detection : Positive ; 4 LEDs lit in clockwise order and 3 short beeps Negative ; 4 LEDs lit in counterclockwise order and one continuous beep Live Wire Check : R-S and S-T lamps will light if voltage between wires are within voltage range Battery Check Function ON lamp blinks to indicate battery low status when instrument is turned on Auto Power Off Auto shut off if no activity is detected after power is turned ON for 15 minutes Power supply Two AA size batteries × 2 ( rated voltage: DC3.0V; maximum rated ower: 300mVA) Continuous Use approx.70 hours ( standby) Dimensions, mass 70 mm ( 2.76 in) W x 75 mm ( 2.95 in) H x 30 mm ( 1.18 in) D, 240g ( 8.5 oz) , Cord length : 0.7m( 27.56 in) Accessories Carrying case( 1) , strap( 1) , R6P manganese batteries( 2) , spiral tube( 1) Hubungi toko DINS ( Digital Instruments) Jl. Ciledug Raya Komplek. Taman Surya Buana Blok L19 - Kreo - Cipadu, Ciledug - Tangerang 15155 CP : Irfan Syihabudin XL : 081908101888 AS : 085282731888
