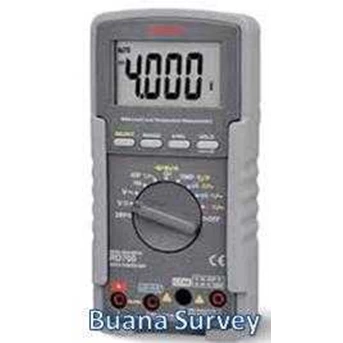

Sanwa RD701, Digital Multimeter 085282731888

Sanwa RD701, Digital Multimeter 085282731888 RD 701, Sanwa Multimeter True RMS Digital Multimeter with Temperature Measurement Basic Features • AC True RMS • 3-3 / 4 digits 4000 count • 0.3% best accuracy • Capacitance measurement ; Not suitable for measuring condensers with large leak current • K type temperature ; Optional accessory K-AD is necessary. ; K type temp. sensor K-250PC is included. • Frequency measurement ; Input voltage : 20VACrms and under ; Input signal : sign wave or square wave with 40% -70% duty ; Input sensitivity : 10Hz~ 20kHz/ 0.9Vrms and above : 20kHz~ 500kHz/ 2.6Vp or 1.9Vrms and above : 500kHz~ 1MHz/ 4.2Vp or 3Vrms and above • ADP function ( for current sensor) • Max recording measurement • Data hold / Range hold • Relative value • Auto power off ( 30min.) ( cancelable) • Alarm for improper test lead insertion to current terminal • Protective holster with wall hanger and lead holder • Tilt stand • Display : numeral display 4000 ( Hz : 9999, capacitance : 5000) • Sampling rate : 3 times / sec. ( Hz : 2 times / sec.) • AC frequency bandwidth : 50^ 500Hz Specifications DCV : 400m/ 4/ 40/ 400/ 1000V ACV : 400m/ 4/ 40/ 400/ 1000V DCA : 400u/ 4000u/ 40m/ 400m/ 4/ 10A ACA : 400u/ 4000u/ 40m/ 400m/ 4/ 10A Resistance : 400/ 4k/ 40k/ 400k/ 4M/ 40MOhm Capacitance : 500n/ 5u/ 50u/ 500u/ 3000uF Frequency : 50Hz~ 1MHz Temperature : -20~ 300C Continuity : Buzzer sounds at between 20Ohm and 120Ohm. Open voltage : approx. 0.4V Diode Test : Open voltage : approx. 1.6V Bandwidth : 50~ 500Hz Fuse : 12.5A/ 500V IR20kA dia.6.3x32mm, 0.63A/ 500V IR200kA dia.6.3x32mm Battery : 6LF22 ( 9V) x1 Size / Weight : H179xW87xD55mm / approx. 460g ( including holster) Standard accessories included : Test Lead ( TL-82) , Thermocouple K type ( K-250CD) , Holster ( H-50) , Instruction manual Safety IEC61010-1 ( EN61010-1) 2001-02 CAT.III 600V Max. / CAT.II 1000V Max. Optional Accessories Clamp probe : CL124, CL140, CL-20D, CL-22AD, CL33DC Temperature probe : K-8-800, K-8-650, K-8-300, K-8-500, K-8-250 K type adapter : K-AD Test lead : TL-21M, TL-21, TLF-120 Carrying case : C-CD Clip adapter : CL-13 Hubungi Toko DINS ( Digital Instruments) jl. Muchtar Raya No. 1D, kreo - Ciledug - Tangerang 15155 CP : Irfan Syihabudin XL : 081908101888 AS : 085282731888
