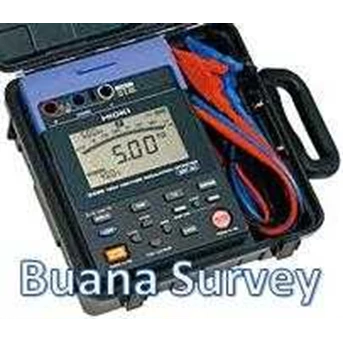

HIOKI 3455, HIGH VOLTAGE INSULATION HiTESTER, 085282731888/ 081908101888

HIOKI 3455, HIGH VOLTAGE INSULATION HiTESTER Call Syihabudin 085282731888/ 081908101888 Maximum 5kV Test Voltage - Up to 5T© of Insulated Resistance Testing Measure insulation of high-voltage equipment ( such as transformers, cables, and motors) Wide testing voltage range, up to 5.00 kV from 250 V DC Adjustable testing voltage in 25 V steps up to 1 kV, and 100 V steps from 1 kV to 5 kV Wide measurement insulation range, up to 5 T© ( at 5 kV testing voltage, 1 T© = 1012 © ) Diagnose the insulation of various equipment with the built-in memory for data storage Basic specifications ( Accuracy guaranteed for 1 year) Testing voltage 250 V DC 500 V DC 1 kV DC 2.5 kV DC 5 kV DC Measurement resistance organization ( Auto ranging) 0.00M© - 9.99M© , 9.0M© - 99.9M© , 90M© - 999M© , 0.90G© - 9.99G© , 9.0G© - 99.9G© , 90G© - 250G© 0.00M© - 9.99M© , 9.0M© - 99.9M© , 90M© - 999M© , 0.90G© - 9.99G© , 9.0G© - 99.9G© , 90G© - 500G© 0.00M© - 9.99M© , 9.0M© - 99.9M© , 90M© - 999M© , 0.90G© - 9.99G© , 9.0G© - 99.9G© , 90G© - 999G© , 0.90T© - 1.00T© 0.00M© - 9.99M© , 9.0M© - 99.9M© , 90M© - 999M© , 0.90G© - 9.99G© , 9.0G© - 99.9G© , 90G© - 999G© , 0.90T© - 2.50T© 0.00M© - 9.99M© , 9.0M© - 99.9M© , 90M© - 999M© , 0.90G© - 9.99G© , 9.0G© - 99.9G© , 90G© - 999G© , 0.90T© - 5.00T© Accuracy Resistance up to testing V/ 100 nA ± 5% rdg. ± 5dgt. 0.00M© - 2.50G© ± 5% rdg. ± 5dgt. 0.00M© - 5.00G© ± 5% rdg. ± 5dgt. 0.00M© - 10.0G© ± 5% rdg. ± 5dgt. 0.00M© - 25.0G© ± 5% rdg. ± 5dgt. 0.00M© - 50.0G© Short current 2 mA Max. 2 mA Max. 2 mA Max. 2 mA Max. 2 mA Max. Leak current measurement 1.00 nA to 1.20 mA, 6 ranges ( measuring current while testing voltage is generated) Voltage measurement ± 50 V to ± 1.00 kV DC, 50 V to 750 V AC ( 50/ 60 Hz) , Accuracy: ± 5 % rdg. ± 5 dgt. , Input resistance: Approx. 10 M© Temperature measurement -10.0 ° C to 70.0 ° C, Accuracy: ± 1.5 ° C 0.0 ° C to 40.0 ° C, Accuracy: ± 1.0° C ( used with the 9631-01/ -05 optional sensor) Other function Diagnosis insulation, Data storage, PC communication, Elapsed time display, Clock, Average, Data hold, Auto discharge, Auto power-off, etc. Display Digital LCD, max. 999 dgt. with backlight, Bar graph display Power consumption LR6 ( AA) alkaline batteries × 6, BATTERY PACK 9459, or AC Adapter 9753 ( 100 - 240 VAC, output 12 VDC) Continuous use : [ LR6] 5 hr, [ 9459] 9 hr, ( Occur 5 kV, + / - open terminal) Dimensions, mass 260 mm ( 10.24 in) W × 260.6 mm ( 9.87 in) H × 119.5 mm ( 4.70 in) D, 2.8 kg ( 98.8 oz) Supplied accessories LR6 ( AA) alkaline batteries × 6, TEST LEAD 9750-01 ( red) × 1, TEST LEAD 9750-02 ( black) × 1, TEST LEAD 9750-03 ( blue) × 1, ALLIGATOR CLIP 9751-01 ( red) × 1, ALLIGATOR CLIP 9751-02 ( black) × 1, ALLIGATOR CLIP 9751-03 ( blue) × 1, USB cable × 1, PC application software ( CD-R) × 1 Hubungi toko DINS ( Digital Instruments) Jl. Ciledug Raya Komplek. Taman Surya Buana Blok L19 - Kreo - Cipadu, Ciledug - Tangerang 15155 CP : Irfan Syihabudin XL : 081908101888 AS : 085282731888
