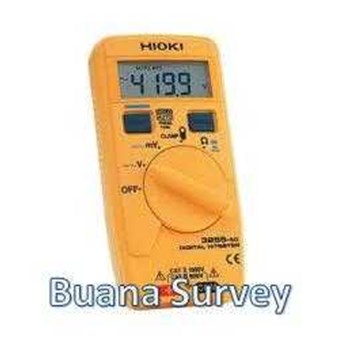

HIOKI 3255-50, DIGITAL MULTIMETER, 085282731888/ 081908101888

HIOKI 3255-50, DIGITAL MULTIMETER Call Syihabudin 085282731888/ 081908101888 CAT III 600V CAT II 1000V Easily Measure Current with a Clamp Sensor Built-in with Current-Limiting Resistor and 1000 V Withstanding Fuse to Prevent Short-Circuit Accidents Polarized terminal design prevents incorrect insertion of test leads Dust-proof and splash-proof structure prevents dust and moisture from entering the product ( IP54) Measure AC load current with optional Clamp On Probes Regarding DMM Accuracy Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information. Basic specifications ( Accuracy guaranteed for 1 year) DC Voltage range 419.9 mV to 1000 V, 5 ranges, Basic accuracy: ± 0.5% rdg. ± 4dgt. AC Voltage range 419.9 mV to 1000V, 5 ranges, Basic accuracy: ± 1.2% rdg. ± 4 dgt., ( Average rectified) Resistance 419.9 © to 41.99 M© , 6 ranges, Basic accuracy: ± 0.7% rdg. ± 4 dgt. AC Current 50 to 500Hz Use with optional Clamp-on probes Display the actual current value by scaling the sensor' s 0.2 VAC f.s. output. Basic accuracy: ± 2.0 % rdg. ± 4 dgt. plus clamp-on probe' s accuracy Continuity buzzer Threshold 50 © ± 40 © or less, Open terminal voltage: 3.4 V or less Diode check Open terminal voltage: 3.4 V or less, Testing current 850 ¼ A or less Auto power save Yes ( Cancel possible) Display Digital LCD, max. 4199 digits Sampling rate 2.5 times/ sec Other functions Auto power save, Auto hold Protection rating IP 54 ( EN 60529) Protection structure Protected against internal short-circuit with protective resistor ( 5 © current-limiting resistor) and built-in 0.44 A fuse ( 1000 VAC/ 10 kA interrupting capacity) Power supply Manganese batteries ( R03) × 2, Continuous use: 200 hours Alkaline batteries ( LR03) × 2, Continuous use: 500 hours Dimensions, mass 70 mm ( 2.76 in) W × 145 mm ( 5.71 in) H × 31 mm ( 1.22 in) D, 210g ( 7.4 oz) ( including batteries) Supplied accessories Test Lead× 1, Holster × 1, Instruction Manual × 1, Manganese batteries ( R03) × 2 ( for trial purposes only) , CARRYING CASE 9371 × 1 Hubungi toko DINS ( Digital Instruments) Jl. Ciledug Raya Komplek. Taman Surya Buana Blok L19 - Kreo - Cipadu, Ciledug - Tangerang 15155 CP : Irfan Syihabudin XL : 081908101888 AS : 085282731888
