Aditeg OS 310, Analog Oscilloscope, 085282731888

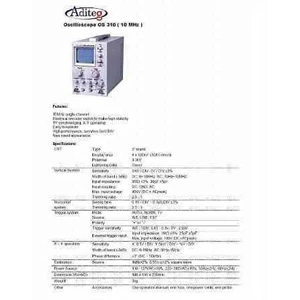

Aditeg OS 310 Analog Oscilloscope, 085282731888 Aditeg OS 310 Analog Oscilloscope Specification Aditeg OS 310 : Oscilloscope Type Analogue Band : 10Mhz Number Of Channels 1 Vertical Deflection Rise Time: D35ns, Sensitivity: 5Mv/ Div...5V/ Div ± 3% , Input Impedance: 1M© ± 3% , 30Pf ± 5Pf, Max. Input Voltage: 400V ( Peak-Peak) , Bandwidth ( -3Db) : Dc 0...10Mhz, Ac 10Hz...10Mhz, Adjustment Coefficient: E2, 5: 1 Horizontal Deflection Time Base: 0, 1œ S/ Div...0, 1S/ Div ± 3% , Adjustment Coefficient: E2, 5: 1 X-Y Mode 10Hz...500Khz, Sensitivity: 0, 5V/ Div, Bandwidth ( -3Db) Trigger Sensitivity: 1Div ( Int) ; 0, 3V ( Ext) , Input Impedance Ext: 1M© ± 3% , 30Pf ± 5Pf, Max. Ext Input Voltage: 400V ( Peak-Peak) , Trigger Modes: Norm, Auto, Tv, Trigger Source: Int, Line, Ext Calibration Voltage: 0, 5V ± 2% , Source: 1Khz ± 2% Cathode Ray Tube Accelerating Voltage: 120V, Size: 60X48mm ( 8X10 Div) Power Consumption 25W Dimensions 190 X 130 X 270mm Weight 3Kg Power Supply 230Vac 50/ 60 Hz Conform To The Norm En61010 600V Cat Ii Standard Equipment: Mains Cable Oscilloscope Probe With 1: 1/ 10: 1 Divider DIGITAL INSTRUMENTS | BUANA SURVEY JAKARTA 0217321129 JL. MUCHTAR RAYA NO. 1D, KREO - CILEDUG 15156 CP : IRFAN 081908101888 T : 0217321129 F : 0217302811 M : 081908101888
